If this is the first time you've updated your FlySight's firmware, chances are you will need to install the Atmel DFU driver.

First, open the Device manager, located in the Control Panel. The easiest way to access the Device Manager is to hit the Start button then type "Device Manager" in the search box. Click on the link at the top of the list to open the Device Manager.

The Device Manager should show one "Unknown device":


Right-click on the "Unknown device" and choose “Update Driver Software” from the context menu.


This will open the “Add New Hardware” dialog box.

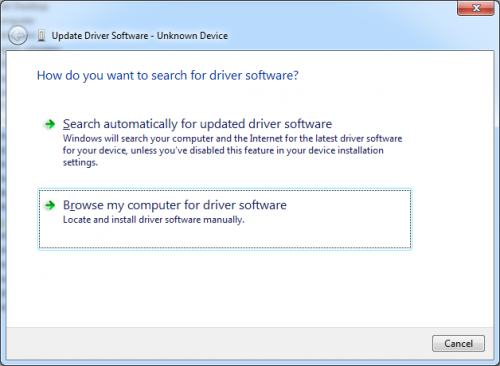

In the “Add New Hardware” dialog box, choose “Browse my computer for driver software”.


In the dialog box that follows, locate the extracted "flysight-update-win" folder. Click "Next".

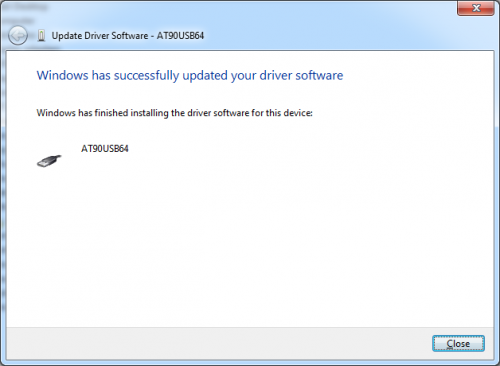

After a moment, you should see a window indicating that you've successfully installed the driver
